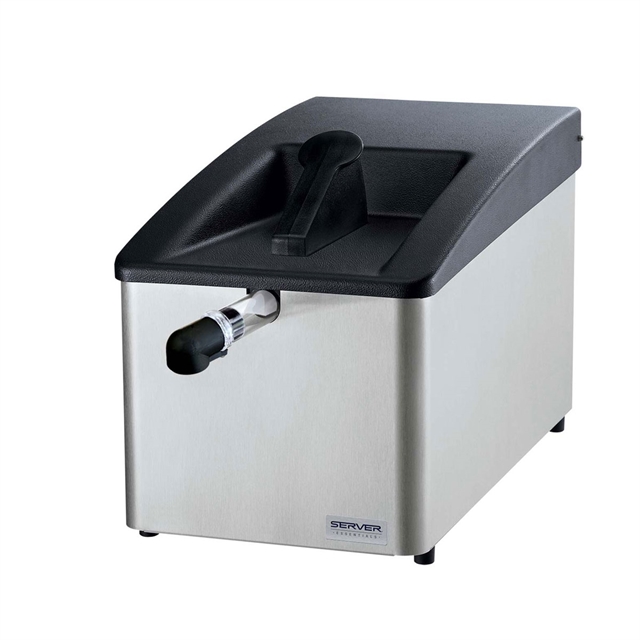

Extreme Pouched Condiment Dispenser

Model:ECDP/N:07500GTIN:687329026838List:$602.07 USD
Wish List How To Buy
  • Extreme Pouched Condiment Dispenser
  • Alt Image A

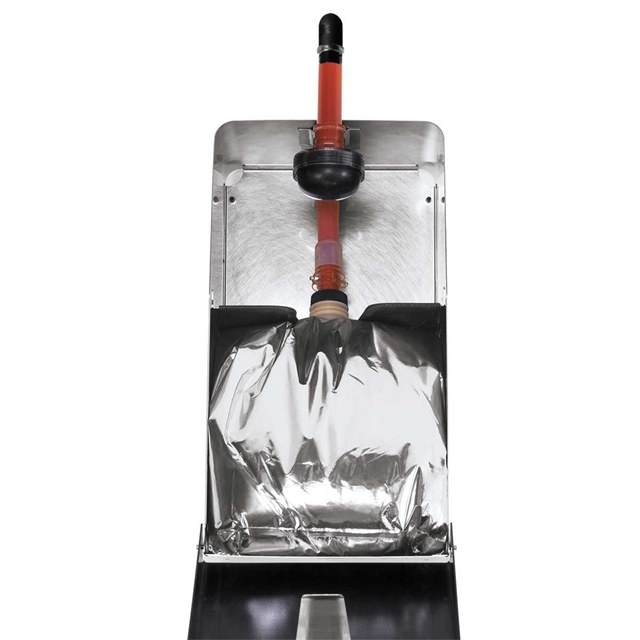

Extreme countertop condiment dispenser taps into a 3 gallon volume packed bag with a 38 mm fitment. Surgical quality plastic pump pierces the pouch to form a sealed, sanitary system. This pump is ADA compliant (requiring less than 5 pounds of pressure to dispense).

Dispenses:
Thick
Thicker
Certifications:
2YrWarranty
ADA-Compliant
BPA-Free
NSF
Serving Application:
Ambient
  • Specifications
  • Documentation
  • Trouble Shooting
GTIN687329026838
Height12 3/8" | 31.4 cm
Width10 3/16" | 25.9 cm
Depth22 11/16" | 57.6 cm
Weight14 lb | 6.4 kg
Dimensional Weight25 lb | 11.3 kg
International Dim Wt30 lb | 13.6 kg
Works With3 gal (11.4 L) pouch, 38 mm connector
Capacity3 gal | 11.4 L
Dispense Typelever pump
Full Portion1 oz | 30 mL
Portionadjustable in 1/4 oz increments; up to 1 oz | adjustable in 7.4 mL increments; up to 30 mL
NSF ListedY

Brochures

Problem:

Why is my Solution pump dripping product?

Solution:

Solution pumps come with (3) discharge fittings with varying opening sizes. Thick products work with the largest opening and thin the smallest. If your product is dripping, it may need the next smaller opening from what is installed. Too hard to push? Use the discharge fitting with a larger opening.

Problem:

Why is my Solution  pump difficult to push down to pump?

Solution:

Solution pumps come with (3) discharge fittings with varying opening sizes. Thick products work with the largest opening and thin the smallest. If it's too hard to push, you may need the discharge fitting with the next larger opening.

Problem:

Why does my Solution pump dispense only a little or no product?

Solution:

When this happens on a Solution pump, the first place to look is within the pump assembly. With the pump apart, check if the ball valves and seal are properly installed. Ball valves must be facing downward.

Our trick to remembering this is to say, in your mom's voice, "Put the BALL DOWN!". My bet is you won't forget it, no matter how hard you try.

Problem:

Why isn't my Solution pump returning to the start position after dispensing?

Solution:

If the plunger is not returning to start position after dispensing, it may likely be a broken spring. The spring is a replacement piece that will eventually wear out and break.

Sometimes how the pump is assembled can cause it to "lock-up" somewhat. During assembly, compress the pump and spring, while aligning flats on piston with the flats inside the cylinder. Another tip is the locking collar should be installed with the pump compressed.
