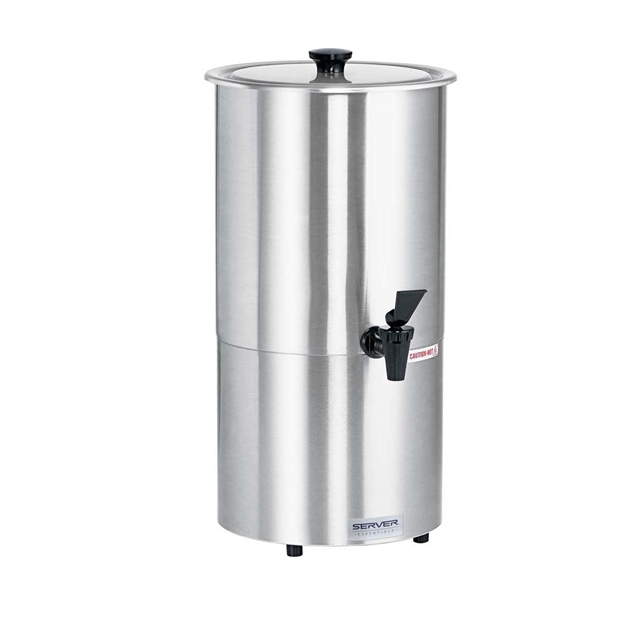

Syrup Server, 3 gallon

Model:SYP/N:84190GTIN:687329015832List:$1,083.42 USD
  • Syrup Server 3 gallon

The Syrup Server is constructed of stainless steel. The product vessel and lift-off lid are also stainless steel. A traditional spigot style faucet is made of durable black plastic. Its compact design takes up a minimal amount of counter space with a 3 gallon capacity.

Standard features include:
  • 3 gallon capacity in a compact countertop design
  • Pre-calibrated thermostat for accurate heat control
  • Adjustable thermostat keeps syrup hot and ready to serve all day
  • Thermostat lock prevents accidental changes
  • 350 watt heating element
Certifications:
2YrWarranty
NSF
UL
Supported Plug Types:
USA
Serving Application:
Hot
  • Specifications
  • Documentation
  • Trouble Shooting
GTIN687329015832
Height19 5/16" | 49.1 cm
Width9 7/8" | 25.1 cm
Depth12 5/8" | 32.1 cm
Weight10 lb | 4.5 kg
Dimensional Weight26 lb | 11.8 kg
International Dim Wt32 lb | 14.5 kg
Vessels1
Capacity3 gal | 11.4 L
Dispense Typespigot
Volts120
Watts350
Amps2.9
PlugNEMA 5-15
Cord72" | 183 cm
C-UL-US ListedY
NSF ListedY

Specification Sheet

Manuals

  • Syrup Warmer Manual 01861
    Syrup Warmers | Manual 01861

    Manual for Syrup Server | Models SY 1 1/2 & SY | Includes: Parts, Setup, Take-down, Cleaning, Use & Troubleshooting

Parts Breakdown

Problem:

My unit stopped heating, turning on or is tripping the breaker. What could be wrong?

Solution:

Quickly double-check, is the outlet getting power? Do you have too many things plugged into the same outlet or circuit?
Check operation in another outlet.

Did the unit accidentally get wet or submerged?
Save yourself the freight fees and let it fully dry out before sending it in for repair. We have had units returned for repair and with a few days of dry time/transit they started working again.

Has any food waste come in contact with the thermostat?
This can cause the unit to stop heating.

Do you use the unit as a water-bath?
Using treated or softened water and air drying during non-use is a great way to extend the life of the water vessel; prevents water from leaking through a corroded pinhole onto the electrics within.

Is descaling part of your scheduled maintenance?
Over time, lime scale can build up on the unit and cause it to stop working.

* Server Products equipment is sold through dealers or distributors. The list prices shown throughout the site are for estimating cost.
The final cost may be lower or higher based on your location, taking into account taxes, landing fees, etc.
